箱东序列号 TANK NO.

   工厂制造编号 MANUFACTURE NO:

  1. 技术参数 Technical Specification

   1.1  设计规范 Design CODE

      IMDG《国际海运危险货物规则》; RID/ADR ;ASME VIII1;  CFR49 ; USDOT ;

      CSC  TIR  UIC  TC  UKDFT  FRA  SP15876

      Frame - in accordance with: ISO 1496/3

      Corner Castings ISO Standard 1161

      Size and type code ISO6346-2022   22K8

   1.2  批准检验机构 Approval and inspection org.

      LR  ASME

  1.3  主要参数 Major Parameter

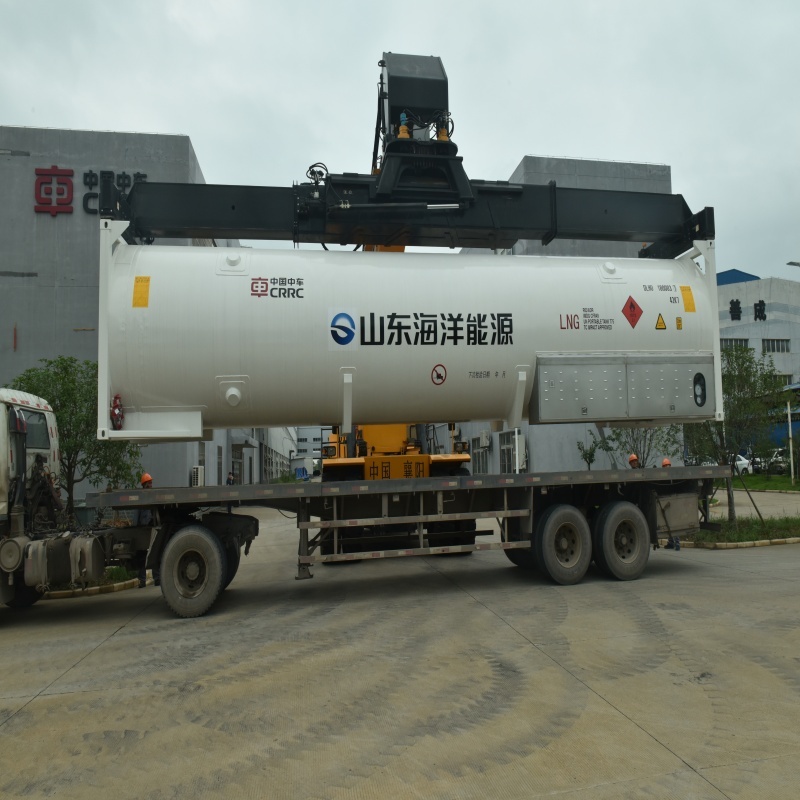

       产品型式                                      UNT50 罐式集装箱

       Type of  produck                                Intermodal ISO Container UN T50

       箱型代码                                       1CC   22K8

       Box code                                        1CC   22K8

       介质                                           液化石油气/丙烯/无水氨/R22

       Medium                                         LPG UN1075/UN1077/UN1005/UN1018

       最大允许工作压力                                2.2MPa

       MAWP                                          2.2MPa

       水容积                                          24500升

       Water capacity                                    24500L

       空箱重量                                        8620 kg

       Tare mass                                        8620kg

       额定质量                                        36000kg

       Max.gross Mass                                   36000kg  79366 Ib

       最大允许装载量                        UN1075  10080kg   UN1005  12985KG

       Maximum payload                       UN1075  10080kg   UN1005   12985KG

       堆码质量                                        213360KG

       Allow Stacking                                    213360KG  470377 Ib

       External dimensions (L*W*H)  mm                   6058*2438*2591

   1.4  容器 Vessel

   1.4.1   设计规范  Design code                           ASME VIII.1

          容器材料  Material                              SA-612M Normalized

          容器尺寸 Tank Dimensions

     内径   Inside Diameter                         2390 mm       94.1 in

     筒节长度Tangent to Tangent                     4590 mm      180.7 in

     筒节名义厚度Shell Nominal Thickness             16 mm         0.63  in

     封头名义Head Nominal Thickness                 18 mm          0.71 in

     封头最小厚度Head Minimum Thickness A/F        15.3mm 15.3 mm  0.603in   腐蚀裕量Corrosion Allowance 1mm       0.0394 in

     Elliptical Heads   Approximate Crown Radius       2147.4 mm

                    Approximate Knuckle Radius       405.6 mm

      设计温度：Design Temperature                    55℃

      最低设计金属温度：Design Material Tem.           -40℃

      液压试验压力 Hydraulic test                      2.9Mpa

      气密性试验压力 Air tese                         2.2MPa
