In general, tube bundle containers will be assembled from many small volume gas cylinders. Although large capacity transportation/storage capacity can be obtained by doing so, the leakage risk caused by multiple gas cylinder connection points cannot be ignored.

Our company can provide tube bundle containers composed of large volume gas cylinders. Generally, each container will be composed of 8-12 cylinders (depending on your weight limit requirements and transportation capacity requirements), which avoids the risk of leakage of the pipeline system to the maximum extent. At the same time, large volume cylinders are made of type I steel cylinders according to ISO11120 standard, which is economical and affordable. It is a good option for you to transport/store high-pressure gas!

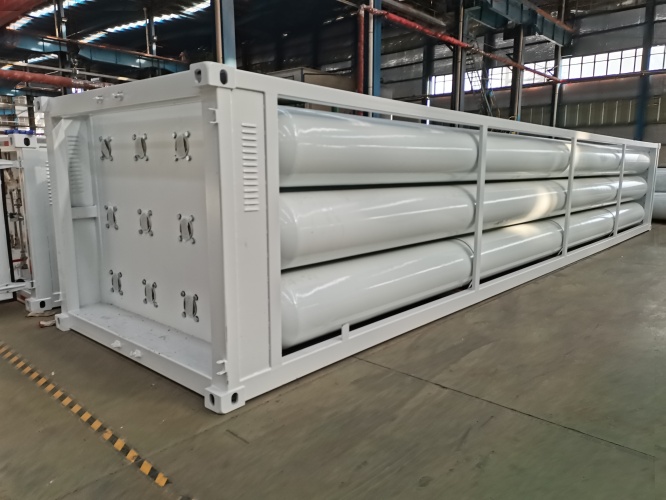

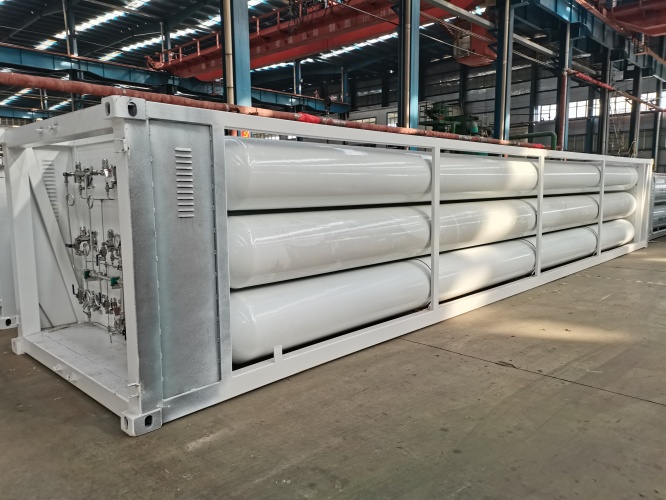

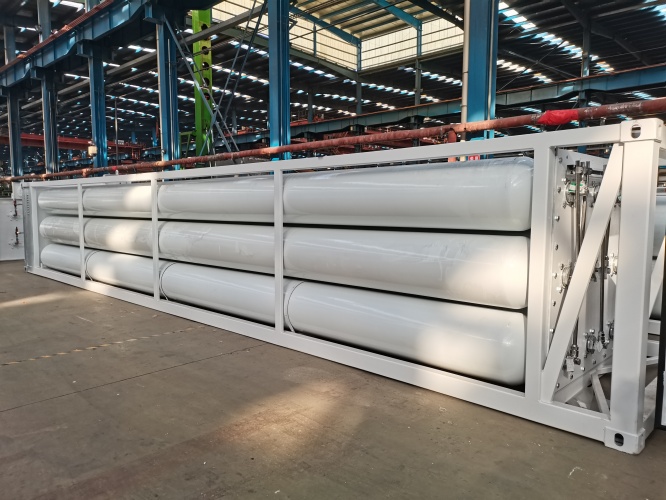

Tube Skid Container

Application

For CNG, Hydrogen, Nitrogen, Helium transport and temporary storage

Characteristics

1, Frame structure integrated constructed, chassis diamantlable.

2, Gas cylinders can be assembled freely and can be assembled as per customer’s requirement.

3,20ft and 40ft container is convenient for marine shipping, road transport and enter limited space more freely.

Standard

Cylinder according to International Standard: ISO 11120,DOT

Container Frame standard: ISO 1496/ISO668

Container Corner fitting Standard: ISO 1161

Inspection body

Bureau Veritas (BV)

Lloyd’s Register Classification Society (China)
