Qingdao Sino Energy Tech Co.,Ltd

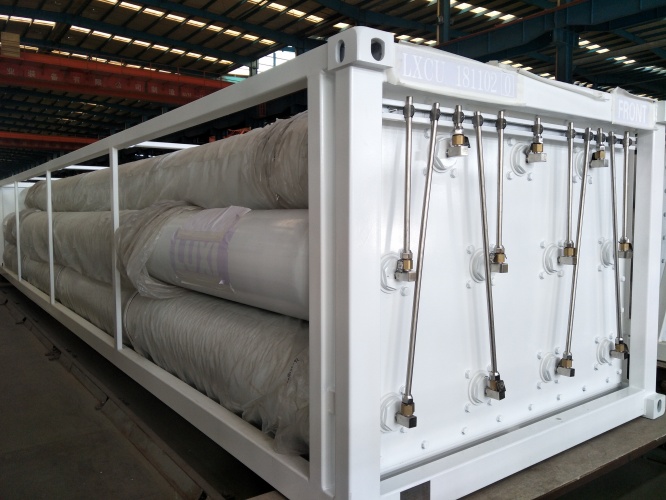

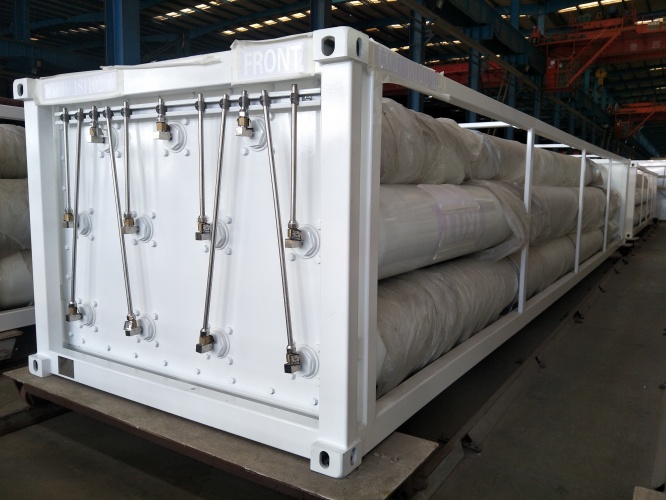

Tube Skid Container
Application
For CNG, Hydrogen, Nitrogen, Helium transport and temporary storage
1. For transportation from Mother station/ gas reserve to daughter station;
2. For transportation to places where pipeline network hasn’t been built;
3. For transportation to places where can’t reach existing distribution system etc;
4. For storage at gas stations.
Characteristics
1, Frame structure integrated constructed, chassis diamantlable.
2, Gas cylinders can be assembled freely and can be assembled as per customer’s requirement.
3,20ft and 40ft container is convenient for marine shipping, road transport and enter limited space more freely.
|
S/N |
Model |
Working Pressure (bar) |
Total water volume (m3) |
Total gas volume (Nm3) |
Container tare quality (kg) |
Medium quality (kg, calculate by CNG) |
Container dimension (L*W*H, mm) |
Matching chassis dimension (L*W*H, mm) |
Trailer dimension (L*W*H, mm) |
Filling medium |
|
1 |
GSJ11-2450 (40FT) |
250 |
26.95 |
8489 |
32180 |
6063 |
12192*2438*1890 |
12391*2480*1430 |
12391*2480*3320 |
CNG or other compressed gas |
