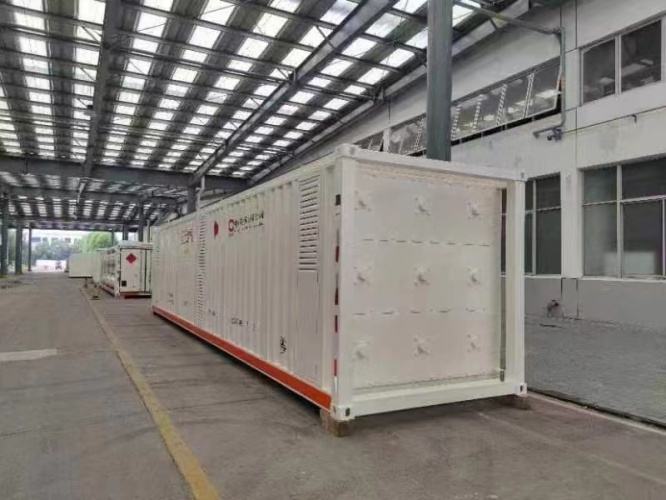

New 9-tube tube bundle container (volume: 37.08m3)

New 9-tube tube bundle container (volume: 37.08m3).
Executive standards:
1. TSG R0005-2011 "Safety Technical Supervision Regulations for Mobile Pressure Vessels" and Amendment No.1 and No.2
2. TSG R0006-2014 "Gas Cylinder Safety Technical Supervision Regulations" 3. "Gas Cylinder Safety Supervision Regulations" (2003 Edition)

Project Data Gas Cylinder Project Data
Bundle type
Container product model GSJ9-4120-CNG-20, working pressure 20MPa
Box mass 28300Kg Working temperature -40~60 ℃
Filling quality 6700Kg, main material 4130X
Rated mass 35000Kg Gas cylinder quantity 9
Main hazard category 2.1 Gas cylinder total volume 37.08M3
UN No. 1971 Hydrostatic test pressure 33.4MPa
Filling medium CNG overall size Å 715xx11525
Air tightness test pressure 20MPa, design temperature -40/60 ℃
Pipeline hydraulic test pressure 33.4MPa, medium characteristics explosive
Inflation capacity 9344Nm3 bursting disc bursting pressure 33.4MPa
External dimensions 12192x2438x1730
The transportation method is only limited to road transportation. The discharge diameter of the bursting disc device (mm) is ≥ Å 25
Designed service life of 20 years
